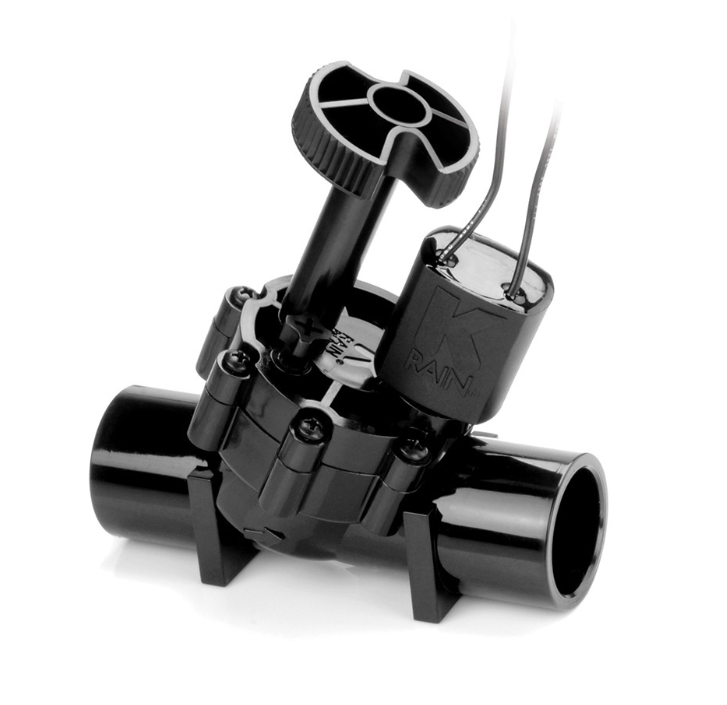

K Rain ProSeries 100 Solenoid Valve 1″

FEATURES AND BENEFITS

• Heavy Duty, Corrosion and UV Resistant PVC Construction – Increases the life of the valve
• Tilt Diaphragm/Piston Assembly – Allows for a straight flow path of the water increasing the flow rate while reducing friction loss
• Debris Tolerant Design – Offers flexibility for use in potable or dirty water applications
• Manual External Bleed Screw – Provides for manual operation in system start up
• Manual Internal Bleed Through Solenoid – Permits manual operation without discharging water outside the valve
• Flow Control with Removable Handle – Delivers precise flow adjustment to the zone and allows you to remove the handle to prevent tampering (Except NFC)
• Captured Plunger – Remove the solenoid without losing the internal plunger
• Self-Cleaning Metering Screen – Screen is in turbulent flow of water for self-cleaning action during operation

Electrical Specifications:

Solenoid: 24V AC 60 Hz n

Inrush Current: .43 Amps

Holding Current: .25 Amps

Engineered to handle the dirtiest water, these reliable valves offer a straight-through flow pattern, reducing the risk of failure due to trapped debris.
The unique tilted diaphragm creates a better flow path than traditional globe-style electric valves by decreasing friction loss and increasing flow rate.

ProSeries 100 valves have a self-cleaning screen.  The straight flow path allows debris to move through and the water flow cleans the diaphragm filter screen.

An optional manual flow control precisely adjusts flow to the zone.  Removable handle prevents tampering.

The captured plunger solenoid allows easy removal when servicing – avoiding loss of internal parts.  Epoxy encapsulated solenoid design ensures longevity.

This is A 1″ female BSP thread.
